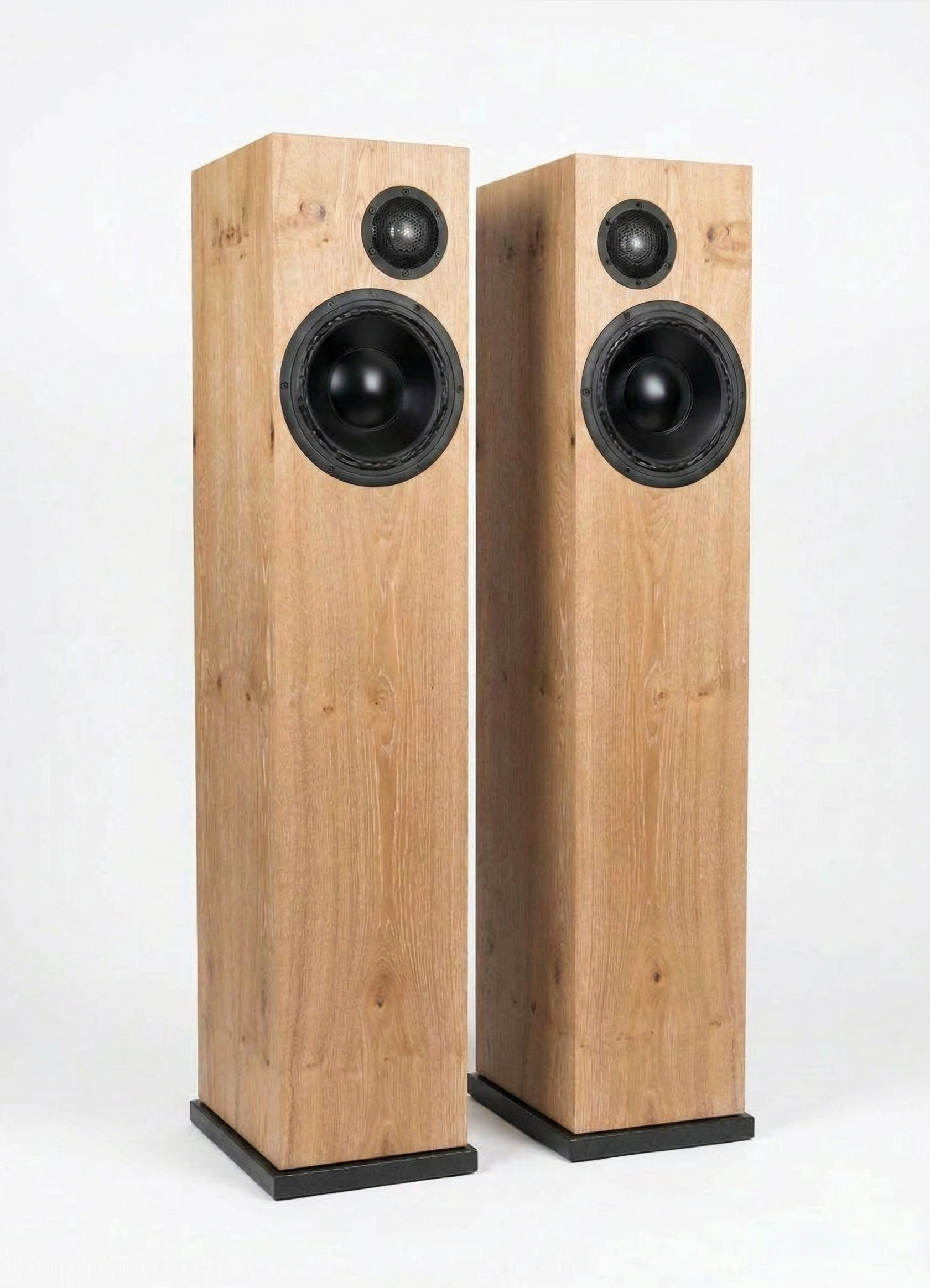

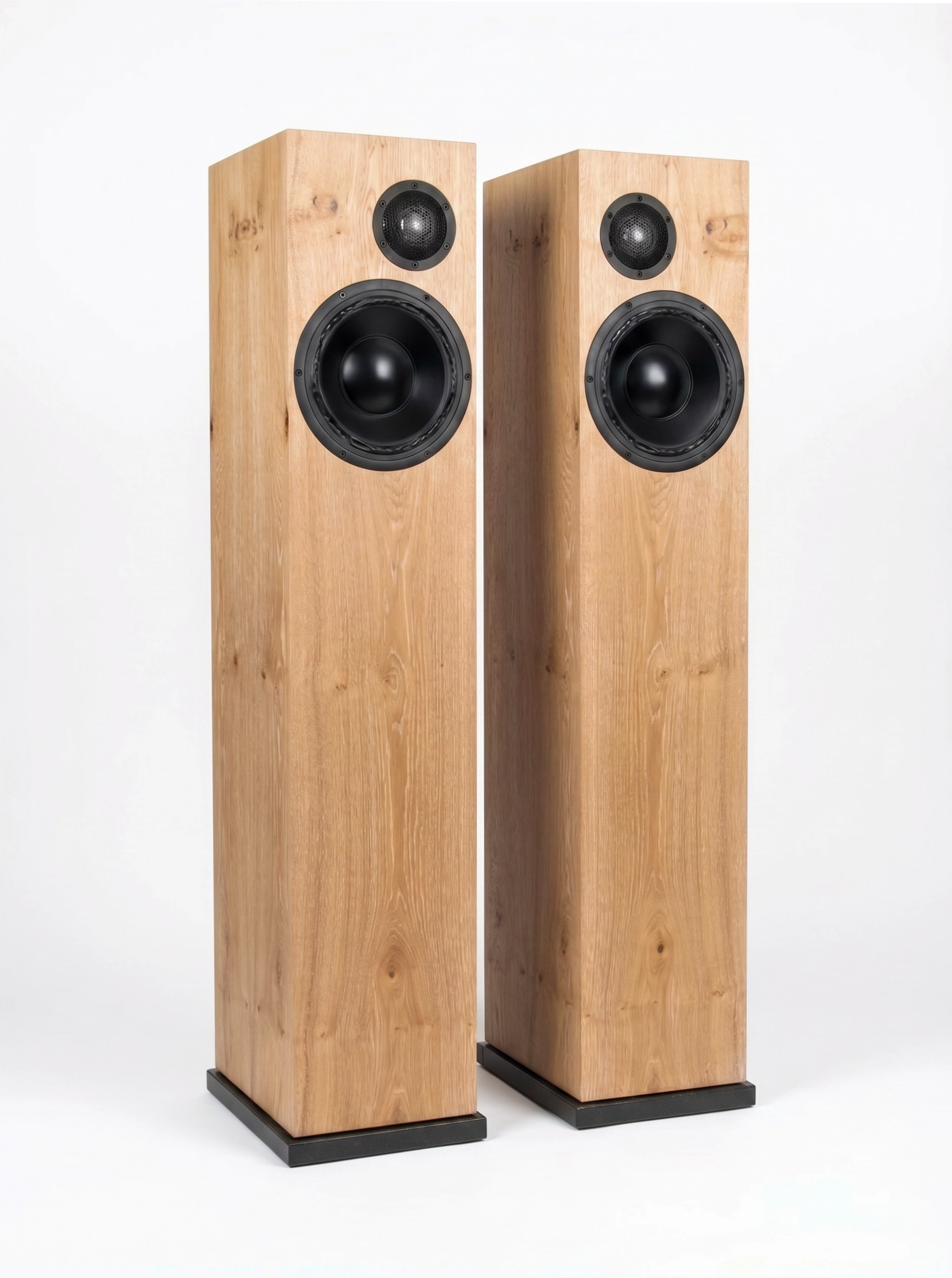

Mira

Datenübersicht

Enclosure Low-resonance integral plate construction with wall thicknesses of up to 38 mm.
Stiffening and damping based on a resonance matrix.
Active cabinet venting realized via mechanical and acoustic flow resistances.
Dimensions W x H x D: 235 mm x 1200 mm x 340 mm
Weight 45 kg
Volume 90 dm³
Mid-bass driver 205 mm Anodized Aluminum Cone / Sd: 235 cm²
The proprietary, high-damping surround suspension is effectively supported by a long-term-stable spider!
Motor Geometry optimized for 2-way systems
Extremely low-resonance, flow-optimized chassis basket
Tweeter 34mm Beryllium Diaphragm with Neodymium Magnet / Sd: 10.5 cm²
Undistorted frequency response: 1.6 kHz – 40 kHz.
Rise time and large-signal behavior improved through optimized filtering.

Thanks to precise time-domain tuning, this design achieves exceptional bandwidth and extremely low distortion, ensuring fatigue-free listening over extended periods.
Crossover An even-order all-pass filter that satisfies the constant-phase and constant-voltage conditions
Transition frequency 1600 Hz
System resonance 33 Hz, aperiodically damped
Transmission range 33 Hz – 40 kHz (+/- 1.6 dB in a free field)
In the fundamental frequency range — as with all electromechanical transducers — performance is highly dependent on placement conditions!
In the mid-to-high frequency range, the dispersion characteristics are optimized for 15°–30° vertically and horizontally!
sound pressure level 86 dB at 2.83 volts input voltage at 1 m with pink noise!
Complies with the IEC standard!
Impedance 4Ω, compatible with all amplifiers except SET
Connection 64-amp terminal blocks
Price On request, depending on individualization.
