UA-103TI

prototype

“A huge coup!”

Knut Barnstorf, ANALOG 03/2025

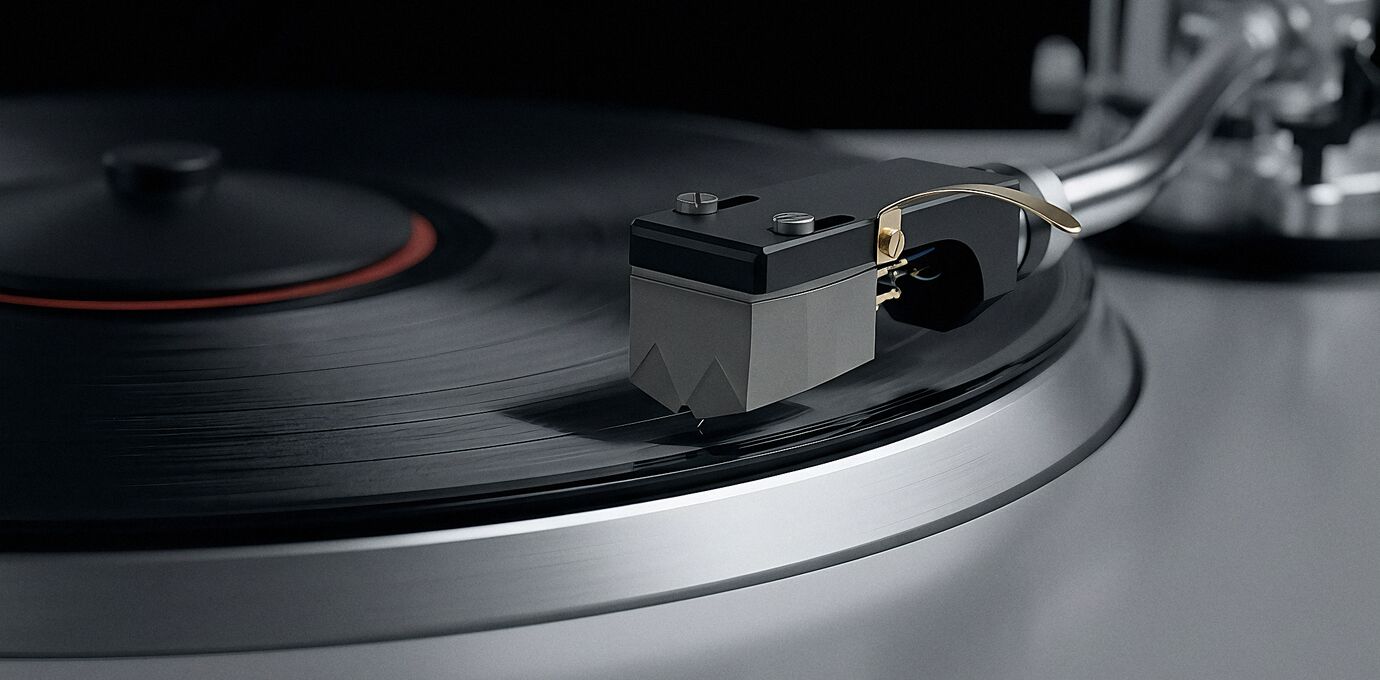

Our UA-103TI MC cartridge is based on the legendary DENON DL-103, whose long-crystalline copper generator serves as the starting point for a new technical development. With an internal resistance of 13 Ω, it offers increased compatibility with most phono preamps and step-up transformers. The housing is manufactured using SLM printing from titanium or aluminum, resulting in very high rigidity with minimal resonance tendency. Depending on the version, it weighs between 15 and 18 grams.

The cantilever is made of boron and fitted with a Micro-Ridge stylus designed for precise groove tracking. Other combinations of cantilever materials and styli are available upon request; our repair services allow us to offer a wide range of options. The generator is mechanically coupled to the housing to dissipate the energy generated during playback quickly and efficiently via the headshell.

The design is currently in the final phase of visual refinement, while the technical specifications are already complete. Series production will begin shortly.
